A c Stall Torque Motor Torque Rating 1 Nm to 20 Nm 6, 8, 10 and 12 Pole
Frame size 80 to 180 L

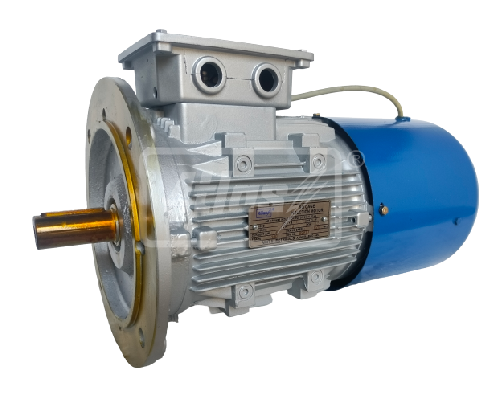

Mooting: - Foot, Flange and Face

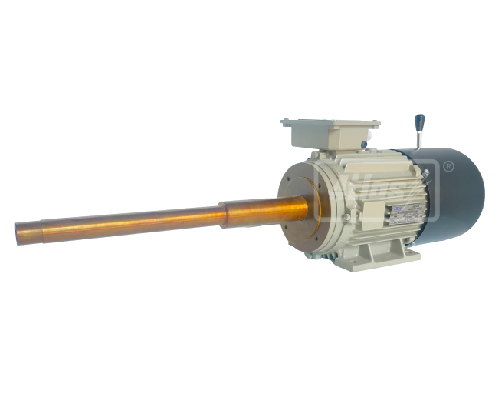

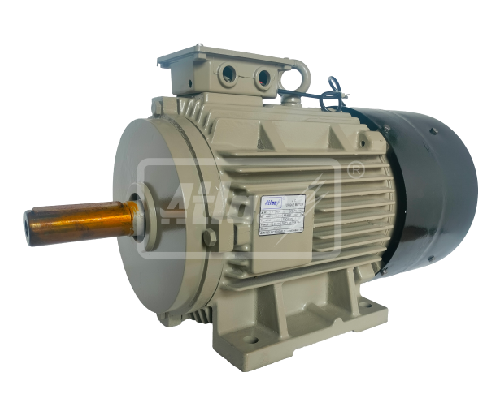

Cable Reel Drum Winder Stall Torque Motor are supplied in a robust, rugged cast iron frame with integral feet. On Request we can supply motor in aluminum body up to 100 L frame. In the application Which Need to drive motor on Low Rpm for long time or continues we suggest higher Frame size.

Cable Reel Drum Winder Stall Torque Motor are supply with class F insulation as standard feature Also supply H on request of customer.

Cable Reel Drum Winder Stall Torque Motor are Design to Work Continues. Winder Torque Motor Supply with S1 Duty.

Cable Reel Drum Winder Stall Torque Motor Supply volts 415 ± 5% 50 Hz. ± 3% customer request we are also able supply motor in 220, 380, 460, 525 volts on 50 or 60 Hz also.

We are supplying motor with Ingress protection 44 Protection as defined in IS: 4691.

Cable Reel Drum Winder Stall Torque Motor are Supply with Enclosure T.E.F.C. (Total Enclosed Fan Cooled)

Cable Reel Drum Winder Stall Torque Motor are Supply Fail Safe brake with a c and d c Motor Type Brake with Manually relive.

All Winder Torque Motor Supply with Terminal box on top position For Foot mounted (B3). Others position box like left or right supply on customer request

Winder Torque Motors provided with minimum two earthling terminals. One in the terminal box and other on foot.

All Winder Torque Motor are painted with semi glossy synthetic enamel paint. However, sp. Paint is available on request.

Stall Torque Motor Operated Cable Reeling Drum is a specialized device used for winding and unwinding cables, particularly in applications like cranes, hoists, and other moving machinery. These motors are designed to operate continuously in a stalled position, acting like a spring of infinite length. This feature makes them ideal for handling long lengths of cable that exceed the capacity of conventional spring-operated drums.
