Cycloidal reducers working principal is simple. The input shaft is mounted eccentrically to bearing causing the cycloidal disc to move in a circle. Cycloidal reducers disc will independently rotate around the bearing as it is pushed against the ring gear. The number of pins on the ring gear is larger than the number of pins on the cycloidal disc. It need to accurate machining. This causes the cycloidal disc to rotate around the bearing faster than the input shaft is moving it around, giving an overall rotation in the direction opposing the rotation of the input shaft. The cycloidal disc has holes that are slightly larger than the output roller pins that go inside them. The output pins will move around in the holes to achieve steady rotation of the output shaft from the wobbling movement of the cycloidal disc.

We having Wide Range in Cyclo Gear Motor it Range Ratio 11, 17, 23, 29, 35, 43, 59, 71 and 87

K W 0.37 to 7.5 (0.5 To 10 Hp) in for 415 ± 5% volts 50 HZ ± 3% other voltage and frequency also we can supply on demand.

K W 0.1 to 2.2. (0.15 To 3 Hp) in 215 ± 5% volts 50 HZ ± 3% other voltage and frequency also we can supply on demand.

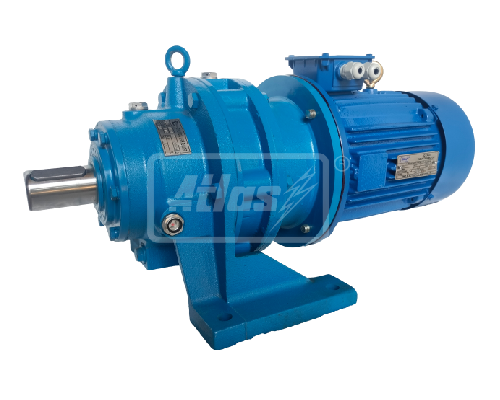

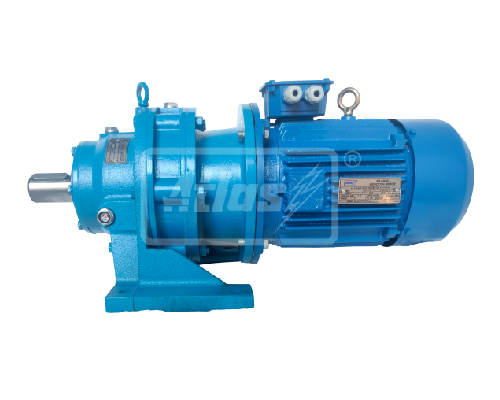

Cyclo Gear Motor are Available in Foot and Flange Mounting for Various application

Cycloidal Gear Motor body is made by a robust, rugged cast iron frame with integral feet. It provides long life.

Shaft id of single piece accurately made out of case carburized alloy steel. Solid with shaft made of high-grade alloy steel so as to give hardware resisting surface duly case hardened & super finished. The Bearing & Oil Seal generals are accurately, cylindrically Ground to give smooth running.

Cyclo Gear Motor Superior quality oil seals are user to ensure complete oil tight.

Gear and bearing are automatically and positively lubricated by means of serially selected synthetic lubricant at all speed by splash of their lubricant from the sump. Thus no special attention is necessary for long time of gear lubrication

Conveyors, Packaging, Crane travel, Material handling lift, Machine tools application.
