0.25 to 15 Hp. (0.18 to 11 KW.) Frame 63 to 180L in 2, 4, 6, 8, 10 & 12 Pole

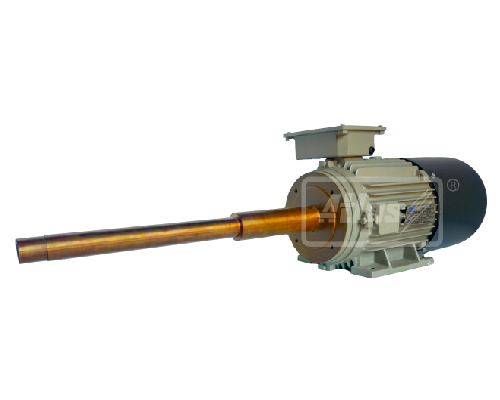

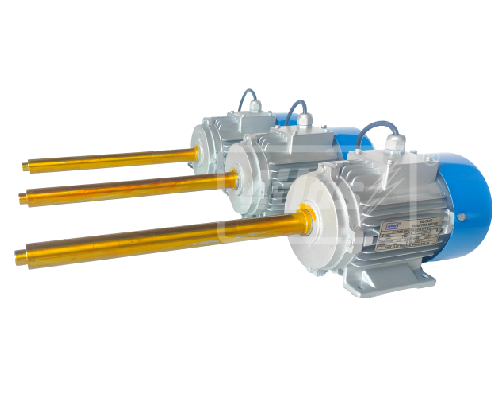

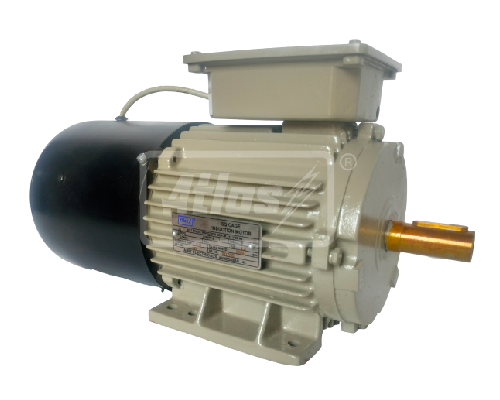

Winder Torque Motor are supplied in a robust, rugged cast iron frame with integral feet. On Request we can supply motor in aluminum body up to 100 L frame. In the application Which Need to drive motor on Low Rpm for long time or continues we suggest higher Frame size.

Winder Torque Motors are supply with class F insulation as standard feature Also supply H on request of customer.

Winder Torque Motors are Design to Work Continues. Winder Torque Motor Supply with S1 Duty.

A c Winder Torque Motor Supply volts 415 ± 5% 50 Hz. ± 3% customer request we are also able supply motor in 220, 380, 460, 525 volts on 50 or 60 Hz also.

We are supplying motor with Ingress protection 44 Protection as defined in IS: 4691.

Winder Torque Motor Rotor is positive locking with joint so that cannot move on high Full lord Torque. Shafts and Rotor are made by En-8 material. Every rotor is dynamically balanced. It's make motor low amplitudes of Vibration & noise.

Winder Torque Motors are Supply with Enclosure T.E.F.C. and T.E.S.C. For Sp. Application Where need to run motor in more than 75% lower Rpm for that we supply Winder Torque Motor with Force cooling arrangement. It can improve to motor winding longer life and trouble-free working.

We can also supply Winder Torque Motor with T.O.P Switch on Demand of Customer. It can provide motor extra safety form over lord protection.

Bearings are adequately lubricated with lithium based high temp up to 150 deg. All the motors are supplied with C3 ball bearing & fully charged with lithium base grease at the time of assembly.

All Winder Torque Motor Supply with Terminal box on top position For Foot mounted (B3). Others position box like left or right supply on customer request

Winder Torque Motors provided with minimum two earthling terminals. One in the terminal box and other on foot.

All Winder Torque Motor are painted with semi glossy synthetic enamel paint. However, sp. Paint is available on request.

Winder Torque Motor used in textile industries, wire cable winding machine, plastic industries, paper mill machine, Steel rolling industries, machine tools, etc. Winder Torque Motor widely Use in Application where need to material wind on drum or beam.
