We have wide production Range in Two Speed Brake Motor.
0.25 to 20 H.P. (0.18 to 37 Kw)
Two speed motor are offer in 2/4, 2/6, 2/8, 4/6, 4/8, & 6/8 poles. (3000/1500, 3000/1000, 3000/750, 1500/1000, 1500/750 & 1000/750)
Two Speed Brake Motors available in single winding 2/4, 4/8, 4/6 and other pole in double winding. Two speed motor are suitable to 415 ± 5 % 50 Hz ± 3% And combined ± 6%. On customer request we are also able supply motor in 220, 380, 460, 525 volts on HZ. 50 or 60 also

we are manufacture, exporter and supplier of two type of Dual Speed brake Motor.

Fail safe dual speed brake motor in case of power supply off ensuring further to a precise stop and quick braking action, the security of sudden inter venations in case of an unintentional power supply failure (i.e. power supply black-out, equipment failure) The braking action is obtained without axial sliding of shaft and provides equal braking torque in both directions of rotations.

Normally off type brake is totally different type of brake in compare of failsafe. it works when supply on. It helps to stop machine when need to stop. Like when need to machine or equipment in situation of emergency.

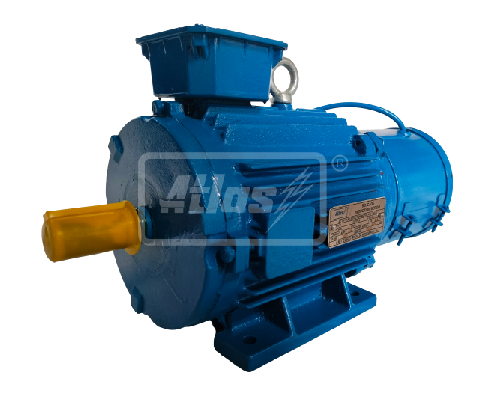

Two Speed Brake Motors are supplied in a robust, rugged cast iron frame with integral feet. On Request we can supply motor in aluminum body up to 100 L frame.

All Dual Speed Brake Motor is supplied with 'F' class insulation but temperature rise restricted to 'B' class.

Dual Speed Brake Motor supply with class F insulation as standard feature Also supply H on request of customer

We are supply Dual Speed Brake Motor with Ingress protection 44 as defined in IS: 4691. Motors can be supplied with IP-54 and IP-55 on request.

Dual Speed Brake Motor Shaft are Made from high carbon steel to provide exceptional Strength & rigidity to minimize deflection.

Dual Speed Brake Motor Rotors are of high-pressure E.C. Grad aluminum die-cast. Every rotor is dynamically balanced. It's made motor low amplitudes of Vibration & noise.

Bearings are adequately lubricated with lithium based high temp up to 150 deg. All Dual Speed motor are supplied with C3 ball bearing & fully charged with lithium base grease at the time of assembly.

Two Speed Motor Brake Motor Supply with Enclosure T.E.F.C. (Totally Enclosed Fan Cooled).

We can also supply Dual Speed Brake Motor with T.O.P Switch on Demand of Customer. It can provide motor extra safety form over lord protection.

Dual speed Motor Supply with Terminal box on top position For Foot mounted (B3). Others position box like left or right supply on customer request.

Motor provided with minimum two earthling terminals. One in the terminal box and another on foot.

All motor is painted with semi glossy synthetic enamel paint. However, sp. Paint is available on request.

Dual Speed Brake Motor are used in Many applications which multiple speeds are required like Pharmaceuticals, Crane, hoist, lift, construction, Chemical industries, Food equipment, Ceramic industries Machine tools for different application. We can also provide dual speed gear motor, dual brake motor.
