0.25 to 50 Hp. (0.18 to 37 KW) Frame 63 to 225M in 2, 4, 6, 8, 10 & 12 Pole

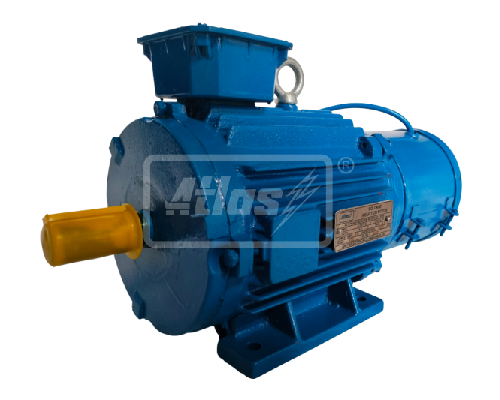

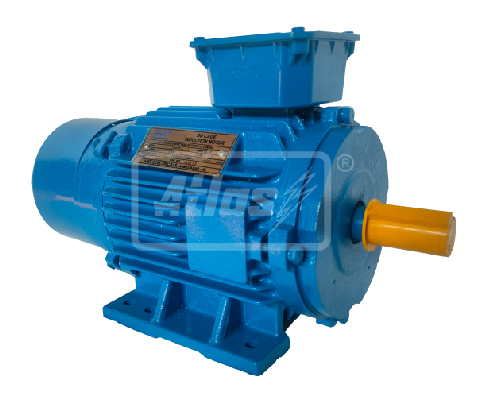

A c Brake Motor is supplied in a robust, rugged cast iron frame with integral feet. On Request we can supply motor in aluminum body up to 100 L frame.

All break Motor supply with class F insulation as standard feature. Also supply H on request of customer.

Three Phase a c Brake Motor Supply volts 415 ± 5% 50 Hz. ± 3% customer request we are also able supply motor in 220, 380, 460, 525 volts on HZ. 50 or 60 Also

We are supplying A c brake motor with Ingress protection 44 as defined in IS: 4691. Motors can be supplied with IP-54 and IP-55 on request.

Rotor is positive locking with Shaft key joint so that cannot move on high Full lord Torque. Shafts are made by En-8 or En-9 material. Rotors are of high-pressure E.C. Grad aluminum die-cast. Every rotor is dynamically balanced. Its make motor low amplitudes of Vibration & noise.

Bearings are adequately lubricated with lithium based high temp up to 150 deg. All the a c Brake motors are supplied with C3 ball bearing & fully charged with lithium base grease at the time of assembly.

We can also supply motor with T.O.P Switch on Demand of Customer. It can provide motor extra safety form over lord protection.

A c Brake motor Supply with Terminal box on top position For Foot mounted (B3). Others position box like left or right supply on customer request.

All A c Brake Motor provided with minimum two earthling terminals. One in the terminal box and other at foot.

A c Brake motor is especially suitable to be used with Lifting Machinery, Textile Machinery, Geared motor, Cable Reeling Drums, Rolling Mills, Machine tools Etc.
