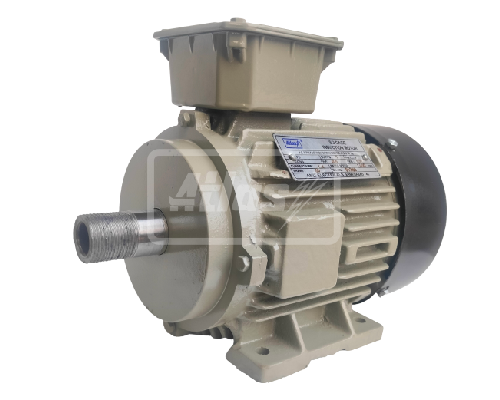

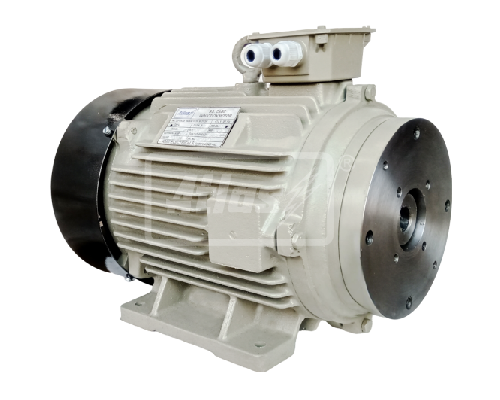

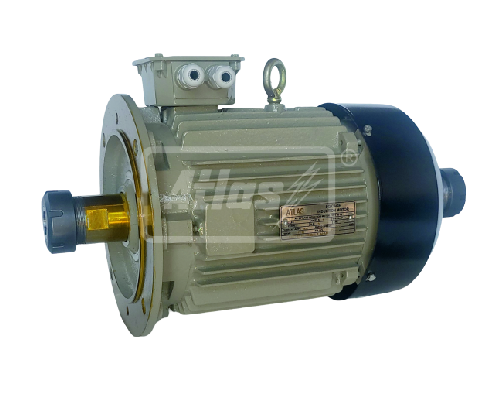

Hollow Shaft Motor

Amit Electricals is a leading Hollow Shaft Motor Manufacturer, exporter, and supplier offering fully custom-built Hollow Shaft Motor solutions designed to meet diverse industrial requirements. As a trusted Hollow Shaft Motor Manufacturer in India and a reputed Hollow Shaft Motor Manufacturer in Ahmedabad, we specialize in producing premium-quality motors tailored precisely to customer specifications. Our motors are widely known for their robust design, high efficiency, and reliable performance in demanding applications. We manufacture a wide range of variants including Hollow Bore Motor, Throughout Hollow Bore Motor, Hollow Shaft Pump Motor, and Hollow Shaft Hydraulic Pump Motor, ensuring seamless integration with pumps, hydraulic systems, and vertical installations. With expertise in engineering advanced Hydraulic Pump Motor solutions, Amit Electricals also offers durable and efficient Vertical Hollow Shaft Motor options ideal for deep-well pumps, industrial machinery, and continuous-duty operations. Every motor is designed with precision and manufactured using high-quality components to deliver superior performance, long service life, and the flexibility required for specialized industrial applications.

Hollow Shaft Motor Specifications

Range of Production

Hollow shaft motors 0.10 to 50 Hp. (0.075 to 37.5 K.W.) Frame 63 to 180L in 2, 4, 6, 8, 10 & 12 Pole

Hollow shaft Type
  • Shaft With One Side Hole
  • Shaft With Both sides Hole
  • Shaft With Throughout Hole

Mounting Type

  • Foot (B3)
  • Flange (B5)
  • Foot (B3)
  • Foot with Flange (B35)

Standards

All Hollow Shaft Motor Three Phase Motors Performance conforms to dimensions according to Customer or as per Application Requirement.

Frame

Three Phase Hollow Shaft Motors are supplied in a robust, rugged cast iron frame with integral feet. On Request we can supply motor in aluminum body up to 100 L frame.

Ratings

All Hollow Shaft Motor Standard Three phase Motors are continuous rated to comply with performance standards.

Voltage and Frequency

Three phase Hollow Shaft Motor Supply volts 415 ± 5% 3 phase 50 Hz. ± 3% We are also capable for Manufacturing three phase motor in different volts and frequency Like 220, 380, 460, 525

Protection

Hollow Shaft Motor are IP-44 Protection as defined in IS: 4691. Motors can be supplied with IP-54 and IP-55 on request.

Insulation

Hollow shaft motors supply with class B & F insulation as standard feature. Also supply H on request of customer.

Terminal Box

All Three phase Motor Supply with Terminal box on top position For Foot mounted (B3). Other position box like left or right supply on customer request

Shaft

Hollow Shaft Motor Shaft Made from high carbon steel Pipe to provide exceptional Strength & rigidity to minimize deflection. We can also supple motor with stainless steel hollow shaft.

Rotor

All Hollow Shaft Motor Rotors are of high-pressure E.C. Grad aluminum die-cast. Every rotor is dynamically balanced. It's made motor low amplitudes of Vibration & noise

Bearings & Lubrication

Hollow Shaft Motor Bearings are adequately lubricated with lithium based high temp up to 150 deg. All the motors are supplied with C3 ball bearing & fully charged with lithium base grease at the time of assembly.

Enclosure

Hollow Shaft motor Supply with Enclosure T.E.F.C. (Totally Enclosed Fan Cooling)

Thermal Overload Protection

We can also supply motor with T.O.P Switch on Demand of Customer. It can provide motor extra safety form over lord protection.

Earthing terminals

Hollow Shaft Motor provided with minimum two earthling terminals. One in the terminal box and other on foot.

Paints

All Hollow Shaft Motor are painted with semi glossy synthetic enamel paint. However, sp. Paint is available on request.

Application

Hollow shaft Motor are widely Use in Pump, Gear Box, Pharma,Chemical industries,Textile ect

Features

  • High efficient
  • Economical price
  • Long Life
  • Durable
  • Smooth finishing
  • Precision design
