0.10 to 75 Hp. (0.075 to 55 KW) Frame 63 to 250M in 2, 4, 6, 8, 10 & 12Pole

Performance conforms to Is12615 and dimensions according to IS 1231 & IS 2223

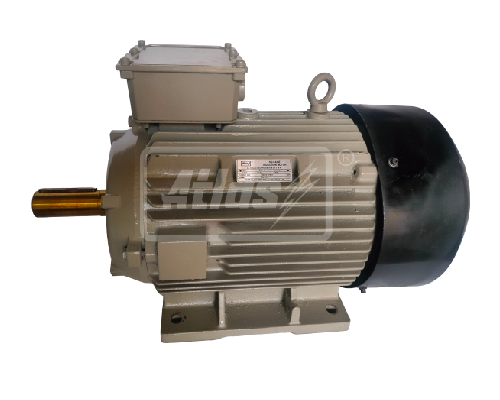

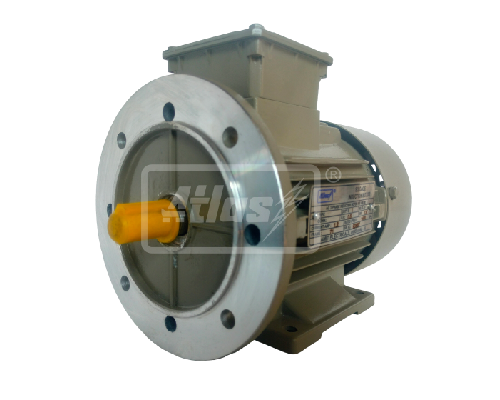

Dual voltage motors are supplied in a robust, rugged cast iron frame with integral feet. On Request we can supply motor in aluminum body up to 100 L frame.

All Dual voltage motor Motors are continuous rated to comply with performance standards. Other rating also supplies on Customer request.

We are Manufacturing Dual voltage motor in
Ratio 1 : 1.732 & 2 : 1 with 50 or 60 Hz
Ratio 1 : 1.732 (48/83, 120/210, 220/380, 240/415, 380/660 & 400/690) with 50 or 60 Hz
Ratio 2: 1 (96/48, 230/115, 440/220) with 50 or 60 Hz

Dual voltage motor IP-44 Protection as defined in IS: 4691. Dual voltage motor can be supplied with IP-54 and IP-55 on request.

Dual voltage motors are supply with class F insulation as standard feature. Also supply H on request of customer.

Dual voltage motor Shaft Made from high carbon steel to provide exceptional Strength & rigidity to minimize deflection.

Dual voltage motor Rotors are of high-pressure E.C. Grad aluminum die-cast. Every rotor is dynamically balanced. Its make motor low amplitudes of Vibration & noise

Bearings are adequately lubricated with lithium based high temp up to 150 deg. All the motors are supplied with C3 ball bearing & fully charged with lithium base grease at the time of assembly.

Three phase Standard motor Supply with Enclosure T.E.F.C. (Totally Enclosed Fan Cooling).

We can also supply motor with T.O.P Switch on Demand of Customer. It can provide motor extra safety form over lord protection.

Dual voltage motor provided with minimum two earthling terminals. One in the terminal box and other on foot.

All Dual voltage motor is painted with semi glossy synthetic enamel paint. However, sp. Paint is available on request.

Manufacture design dual voltage is to make this motor available for any country used because every country have a different voltage. It Can Help to all Machine Manufacture who are Export.
