We having wide production range of three phase motor 0.10 to 75 H.p. (0.075 to 55 KW.) Frame 63 to 250M in 2, 4, 6, 8, 10 & 12 Pole

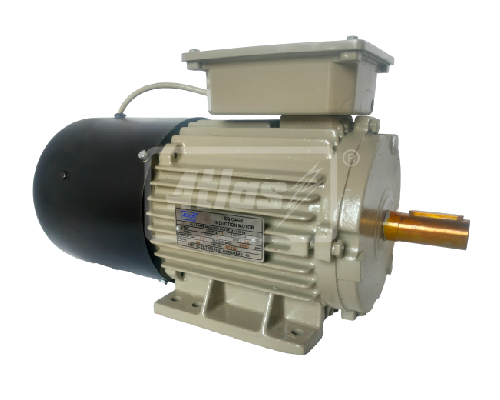

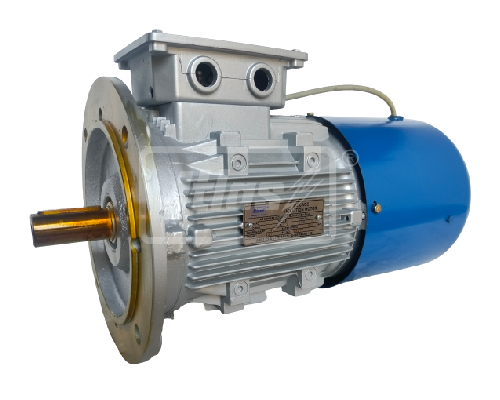

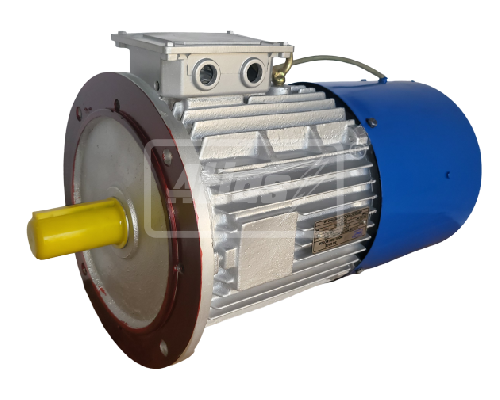

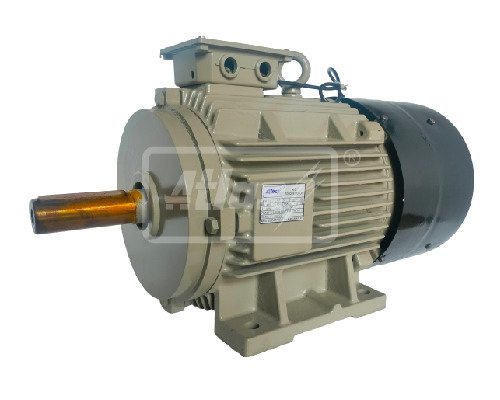

Force Cooled Motors are supplied in a robust, rugged cast iron frame with integral feet. On Request we can supply motor in aluminum Presser Die cast body up to 100 L frame.

All Force Cooled Motors are continuous (S1) rated to comply with performance standards.

Force Cooled Motors Supply volts 415 ± 5% 3 phase 50 Hz. ± 3% We are also capable for Manufacturing three phase motor in different volts and frequency Like 220, 380, 460, 525.

We are supplying motor with Ingress protection 44 as defined in IS: 4691. Motors can be supplied with IP-54 and IP-55 on request.

Force Cooled Motors supply with class "F" insulation as standard feature. Also supply H on request of customer.

Force Cooled Motors are of high-pressure E.C. Grad aluminum die-cast. Every rotor is dynamically balanced. It's make motor low amplitudes of Vibration & noise

Shaft made from high carbon steel to provide exceptional Strength & rigidity to minimize deflection. Motor Rotor is positive locking with joint so that cannot move on high Full lord Torque.

Bearings are adequately lubricated with lithium based high temp up to 150 deg. All the motors are supplied with C3 ball bearing & fully charged with lithium base grease at the time of assembly.

Three phase Standard motor Supply with Enclosure T.E.F.C. (Totally Enclosed Fan Cooling).

We can also supply motor with T.O.P Switch on Demand of Customer. It can provide motor extra safety form over lord protection.

All Force Cooling Motor Supply with Terminal box on top position For Foot mounted (B3). Others position box like left or right supply on customer request.

All Three Phase Motor provided with minimum two earthling terminals. One in the terminal box and other on foot.

All Three phase motors are painted with semi glossy synthetic enamel paint. However sp. Paint is available on request.
