0.10 to 75 Hp. (0.075 K.W. to 55 K.W.) Frame 63 to 250M in 2, 4, 6, 8, 10 & 12 Pole

Inverter Duty motor Performance conforms to Is: 325 and dimensions according to IS 1231 & IS 2223

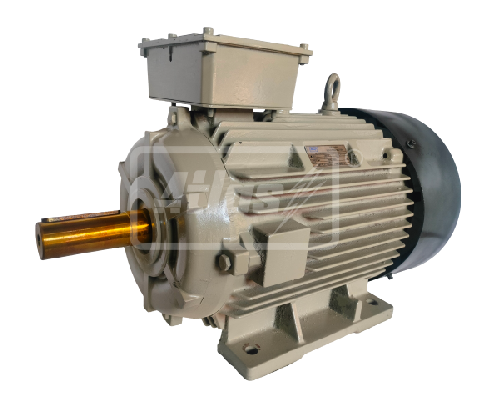

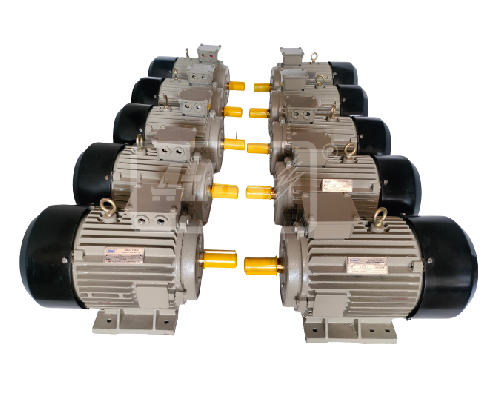

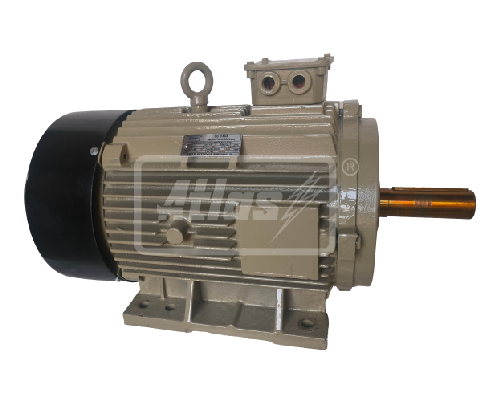

Inverter Duty motor is supplied in a robust, rugged cast iron frame with integral feet. On Request we can supply motor in aluminum body up to 100 L frame.

All Standard Inverter Duty motors are continuous rated to comply with performance standards.

Supply volts 415 ± 5% 3 phase 50 Hz. ± 3% We are also capable for Manufacturing three phase motor in different volts and frequency Like 220, 380, 460, 525.

We are supply Inverter Duty motor with Ingress protection 44 as defined in IS: 4691. Motors can be supplied with IP-54 and IP-55 on request.

We can also supply Inverter Duty motor with T.O.P Switch on Demand of Customer. It can provide motor extra safety form over lord protection.

Inverter Duty motor is fitted with separate cooling arrangement which ensures that the motors perform successfully at lower speeds without over-heating of the motor. This also ensures that the loading capacity of the motor is not reduced in this range.

Inverter Duty motor supply with class F insulation as standard feature. Also supply H on request of customer.

Single phase motor Bearings are adequately lInverter Duty motor Shaft Made from high carbon steel to provide exceptional Strength & rigidity to minimize deflection.

Rotors are of high-pressure E.C. Grad aluminum die-cast. Every rotor is dynamically balanced. Its make motor low amplitudes of Vibration & noise

Inverter Duty motor Bearings are adequately lubricated with lithium based high temp up to 150 deg. All the Inverter Duty motor are supplied with C3 ball bearing & fully charged with lithium base grease at the time of assembly.

All Inverter Duty motor Supply with Terminal box on top position For Foot mounted (B3). Other position box like left or right supply on customer request

Inverter Duty motor provided with minimum two earthling terminals. One in the terminal box and other on foot.
