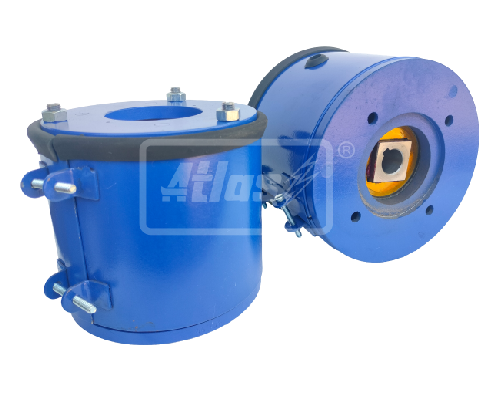

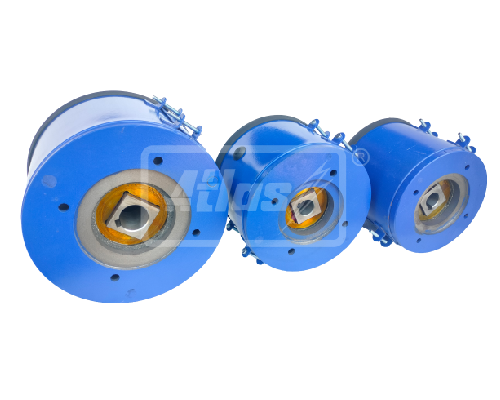

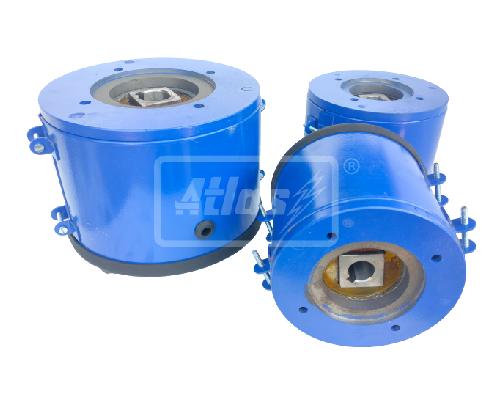

Our of Electromagnetic A c fail safe disc brake are compact and modern in design. Directly mounted at non-driving end shaft of the motor. It consists of liner plates Brake Disc with square hole at the center. One corresponding piece of square hub is supplied with the brake. This hub is keyed to the motor shaft and the liner plate is free on this hub. Normally liner plate is gripped between two discs with the help of spring pressure. They work on A.C. Supply when the current is supplied on the brake, one disc is attracted by electromagnet against pressure and the liner plate is released. Thus the brakes are "off". Once the brake is set it does not require adjustment or maintenance. When the liner plates wear with the use then only air gap is required to be maintained periodically. An arrangement to release the brake manually could be provided on request.

Our of Electromagnetic A c fail safe disc brake torque Range 0.2 to 30 KGM. it Suitable to 0.1 to 20 Hp.

Ac fail safe disc drake diameter 130 to 310 MM.

We are Manufacture fail safe Brake in 415,380 and 230 VAC.

Fail Safe Brake Coil are Made by "F" Class high Quality enamel copper wire. For Longer Operation prevent temperate.

Used in Machine Tools, Hydro Extractors, Coil winding Machines, Wire Drawing Machines, Rubber Mixing Mills, Rolling Mills, Printing Machines and in many other industries such as a Cement, Mining, Sugar, Textile, Material Handling etc..In case of power failure in machines like Hoists, Cranes, Winches, Elevators, etc.. Application of brake is must. We offer AC type brakes, called fail safe brake, as in case of power failure, these brakes apply mechanically.
